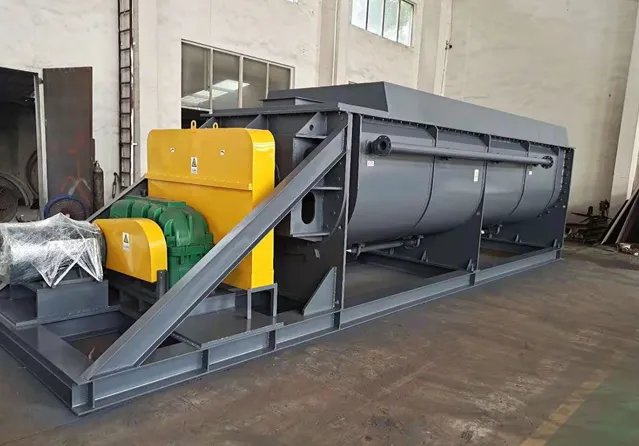

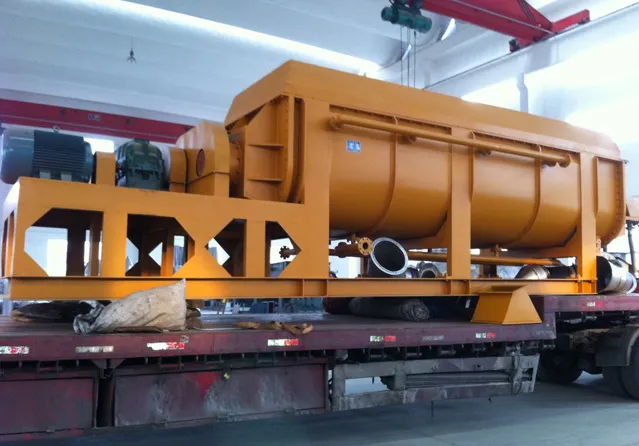

Paddle Dryer is a kind of mixing dryer low speed by conducting heating. There is jacket layer on the tube of the dryer and hollow blades on the hollow axle in which hot carrier is passing through. Wet materials will make heat exchange with the heating surface of the tube and the blades when it is mixed by the blades so as to reach dry.
| Model | Heat transfer area(m²) | Effective volume(m³) | Revolution(r.p.m) | Power(KW) | Main Machine size(mm) |
| JYG-8 | 8 | 0.3 | 10-25 | 4 | 4900×850×850 |
| JYG-20 | 20 | 1.3 | 10-20 | 11 | 6000×1400×1200 |
| JYG-35 | 35 | 2.4 | 10-20 | 15 | 7000×1650×1800 |
| JYG-50 | 50 | 3.9 | 10-20 | 30 | 8300×1800×2000 |
| JYG-65 | 65 | 5.2 | 10-20 | 45 | 9000×2000×2300 |
| JYG-80 | 80 | 6.4 | 5-15 | 55 | 9600×2200×2500 |
| JYG-100 | 100 | 8.1 | 5-15 | 75 | 9700×2500×2600 |
| JYG-120 | 120 | 9.8 | 5-10 | 95 | 10000×2600×2800 |
Blade dyer system costs low and low operating cost;
Environmental pollution: do not carry air, dust entrainment few materials;
Paddles have self-cleaning function by their interaction and materials have longer dwelling time and high filling High factor.
